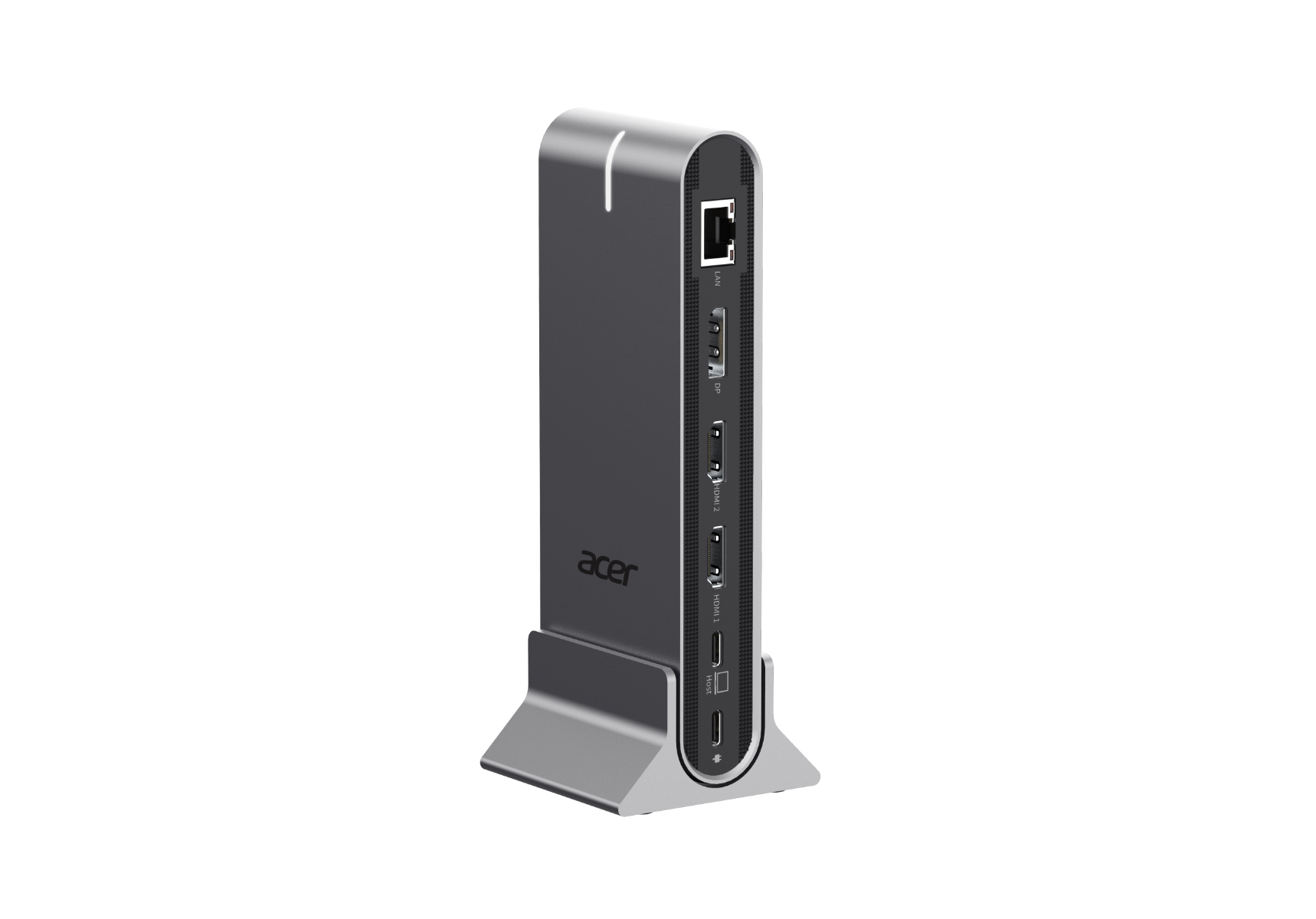

Acer Type-C Universal Docking Station 15-in-1
Ref.
HP.DSCAB.022

Acer Type-C Universal Docking Station 15-in-1

Ref.
HP.DSCAB.022
  • 15-in-1 USB-C Docking Station
  • Ultra HD Display Support (Up to 8K)
  • SuperSpeed Data Transfer (Up to 10Gb/s)
  • 100W USB-C Power Delivery
  • Universal Compatibility (Windows, macOS, ChromeOS)
  • 3.5 mm headphone jack
Out of stock
Features
Loading...
Please note that the 'Features' tab contains general information about the product series. For the exact technical specifications of the selected model, please click on the 'Specifications' tab.
Specifications
Loading...
More Information

Product Details

Manufacturer Part Number

HP.DSCAB.022

EAN

4712842946779

Technical Information

USB

Yes

Maximum Resolution

7680x4320@60Hz

Host Interface

USB-C

DisplayPort

Yes (1)

Max Data Transfer

Up to 10 Gb/s

Audio Line Out

3.5 mm combo jack

Memory

Memory Card Supported

SD / microSD (v3.0)

Power Description

Maximum Power Supply

Up to 100 W

Physical Characteristics

Colour

Grey

Height

60 mm

Width

60 mm

Length

162.3 mm

Depth

45 mm

Weight (Approximate)

300 g

Temperature

0°C – 40°C

Miscellaneous

Additional Information

Technical Information
HDMI or DP Port: Single Display up to 4K@60Hz Max
VGA port: 1920*1080P@60Hz Max
3×USB-A Port: Support up to 5Gbps Data Transfer
USB-C port: Support up to 5Gbps Data Transfer
RJ45 Port: Gigabit Ethernet, downward compatible with 100Mbps, 10Mbps
USB-C PD port: Support up to PD100W fast chargin
SD/TF card slot: Support V3.0 data transfe
3.5mm Audio: Support up to 96KHz/24bit sampling rate

Compatibility

USB-C laptops

General Product Safety

Manufacturer Information

Acer Inc.

8F, No. 88, Section 1, Xin Tai 5th Road, Xizhi

New Taipei City 221

EU Responsible person/EU Importer

Acer Italy S.r.l.

Viale delle Industrie 1/A, 20044 Arese (MI), Italy

https://www.acer.com/it-it

E-mail: acer-italy-srl@legalmail.it

Document / Image Safety

Accessories: available HERE

Networking: available HERE

eScooters: available HERE

eBikes: available HERE

Warranty

Warranty

2 Year   Acer's Standard Warranty
